96 splices16 SC Adaptors


SKU: LM-H096SP Category:

  Data sheet

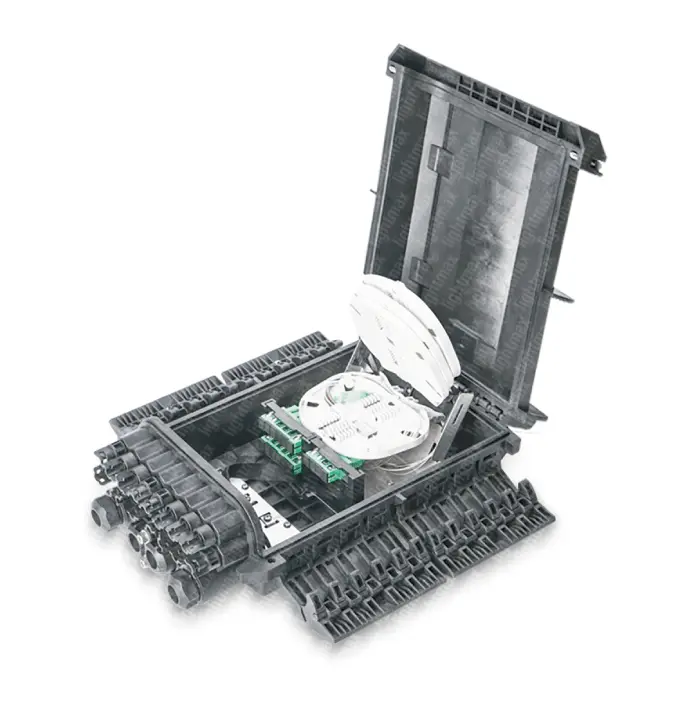

The images are a representation of the product.


Family Termination
Location Outdoor
Material MPP
Colour Black
Dimensions 385 x 245 x 130 mm
Weight 4.5 Kg
Adapter type SC Sx
Adapters capacity 16 Adapters, not included
Splice tray type Included
Splice trays capacity 4 splice trays
Splices per
splice tray capacity
24 (Max)
Splice protector type 60 mm heat shrinkable
Puertos • 4 Input / Output ports
Cable diameter • 2x máx. 8~17.5mm
•2x máx. 10~17.5mm
Drop cable 16 ports – 3x2mm
Temperature -40°C ~ + 65°C

• Splice protectors
• Plastic hose clamps kit
• Buffering tube, 1 m
• Insulation tape

  • Cable rings
• Plastic caps
• 1 Metal key
• 1 M6 Allen wrench
